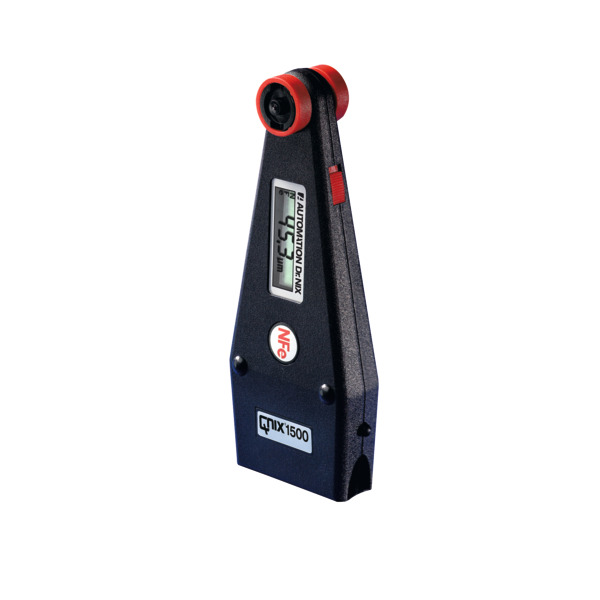

QNix 1500 Layer Thickness Measuring Tool 1836

QNix 1500 Layer Thickness Measuring Tool 1836


Electronic layer thickness measuring tool with LCD display for non-invasive measurements of non-magnetic layers on steel and iron as well as insulating layers on non-ferrous metals, such as aluminum, copper, zinc, stainless steel, etc. Durable variant suitable for construction sites and single-handed operation with automatic activation and deactivation Two integrated, non-wearing, and independently operating measurement probes for Fe and NFe metals. Measuring range: 0?5,000 µm. No calibration required. With duplex display to read measured values in any device position.

Resolution:



  • 0.1 µm from 0.0?99.9 µm
  • 1 µm from 100?999 µm
  • 0.01 mm from 1.00?5.00 mm

Measuring accuracy:
  • ± (1µm + 2 % of the measured value) from 0?999 µm
  • ± 3.5 % of the measured value from 1,000?5,000 µm

Complete with:
  • 9 V block battery
  • Storage pouch with calibration panels
  • Operating manual
  • Dimensions: 166 x 64 x 34 mm
  • Weight: approximately 150 g including battery


Ordering Information

1836.0000.0000/sales unit 1
