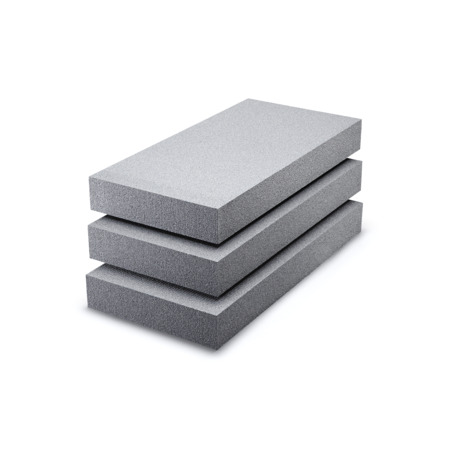

EPS Prime Insulation Board 3813

EPS Prime Insulation Board 3813


ETICS hard foam insulation board, tested in the system build-up, for use in the ETIC system EPS Prime.




  • facade insulation board made from expanded polystyrene hard foam in accordance with EN 13163
  • thermal conductivity: 0.032 W/(m · K)
  • WAP application type
  • diffusible
  • aging-resistant
  • easy to apply
  • length: 100 cm, width: 50 cm

files

data sheets



Ordering Information

3813 / 1 cm / PU 24.0 m²
3813 / 2 cm / PU 12.0 m²
3813 / 3 cm / PU 8.0 m²
3813 / 4 cm / PU 6.0 m²
3813 / 5 cm / PU 4.5 m²
3813 / 6 cm / PU 4.0 m²
3813 / 7 cm / PU 3.0 m²
3813 / 8 cm / PU 3.0 m²
3813 / 9 cm / PU 2.5 m²
3813 / 10 cm / PU 2.0 m²
3813 / 12 cm / PU 2.0 m²
3813 / 14 cm / PU 1.5 m²
3813 / 16 cm / PU 1.5 m²
3813 / 18 cm / PU 1.0 m²
3813 / 20 cm / PU 1.0 m²
3813 / 22 cm / PU 1.0 m²
3813 / 24 cm / PU 1.0 m²
3813 / 26 cm / PU 0.5 m²
3813 / 28 cm / PU 0.5 m²
3813 / 30 cm / PU 0.5 m²

Further insulation board thicknesses on request. On request can also be supplied plasticized (with sound insulation properties).

Weitere Informationen

More information on system-compliant use can be found in the section Applications and solutions.
