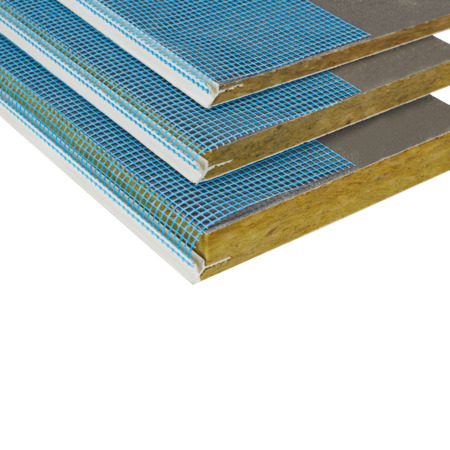

ETICS Reveal Board MW 3866

ETICS Reveal Board MW 3866



For precise, highly efficient and time-saving formation of reveal insulation in the Brillux ETIC systems with mineral wool insulation boards.




  • insulation element with integrated corner profile and fabric strips
  • highly insulating
  • easy to apply
  • dimensionally accurate
  • form and aging-resistant
  • finely structured surface
  • can be directly coated
  • sanded on both sides, mineral coating with non-woven embedding
  • no reinforcement of reveals required
  • resistant to driving rain according to ift Rosenheim (in combination with the ETICS Window Connection Profile 3859)
  • format: Finished installation length is based on the object
  • board thickness: 12.5, 20.0 and 30.0 mm
  • board width (reveal depth): customizable, up to max. 600 mm
  • maximum length: up to 3000 mm
  • packaging: Delivery is based on the object in the selected board thickness, according to the specified board width and length.
