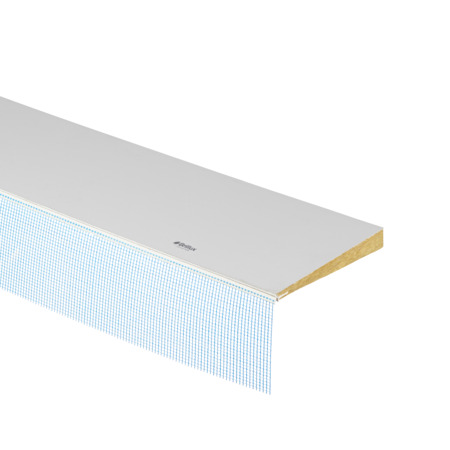

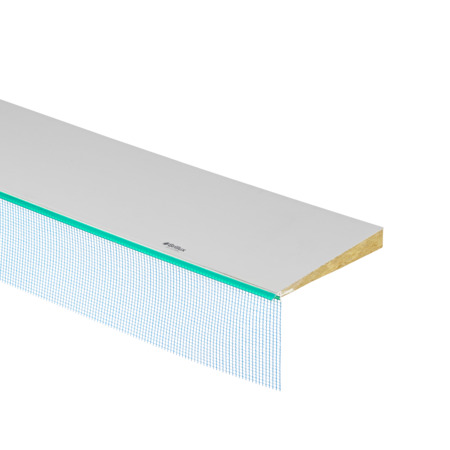

TS-Vario Wedge Plate MW 3526

To establish a leak-proof, second drainage level to use aluminum and natural stone benches in the Brillux ETIC system.

TS-Vario Wedge Plate MW 3526

TS-Vario Wedge Plate MW 3526

TS-Vario Wedge Plate MW 3526

TS-Vario Wedge Plate MW 3526

special, wedge-shaped mineral wool insulation board
with "waterproof" lamination
flexible mesh profile with hinge technology
predefined slope with 2.5° or 5° inclination

Ordering Information

3526 / 2.5° slope / 200 mm overhang
3526 / 2.5° slope / 300 mm overhang
3526 / 2.5° slope / 400 mm overhang

3526 / 5° slope / 200 mm overhang
3526 / 5° slope / 300 mm overhang
3526 / 5° slope / 400 mm overhang

length: 3 meters or made to measure

Data Sheet PDF, Recommend by e-mail

Characteristics

special, wedge-shaped mineral wool insulation board
with "waterproof" lamination
flexible mesh profile with hinge technology
predefined slope with 2.5° or 5° inclination

Ordering Information

3526 / 2.5° slope / 200 mm overhang
3526 / 2.5° slope / 300 mm overhang
3526 / 2.5° slope / 400 mm overhang

3526 / 5° slope / 200 mm overhang
3526 / 5° slope / 300 mm overhang
3526 / 5° slope / 400 mm overhang

length: 3 meters or made to measure
