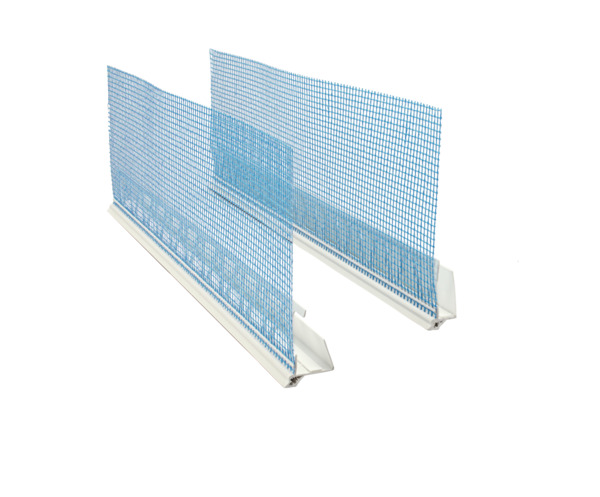

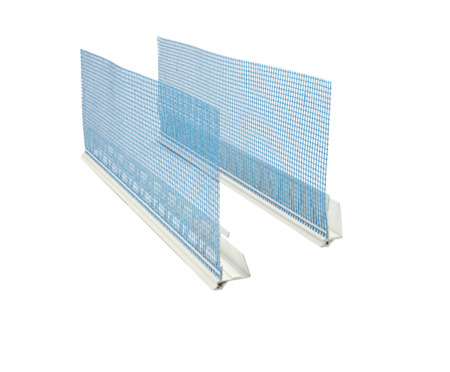

ETICS Lintel Profile U 3534
Plastic termination profile as a termination in the lintel area of e.g., roller shutters or lamella-blind-boxes. Can be used by placing on plaster base panels, e.g., ETICS Wall Protection Board 3680.
- one-sided perforated termination profile made from reinforced plaster with two-stage leveling edge, drip protection and one-sided fabric strips
- for secure fixation of plaster base plates, the legs of the profiles are pretensioned and additionally equipped with self-adhesive PE tape
- optimum adhesion of the reinforcement plaster and render coating
- two-stage leveling edge simplifies the implementation of reinforcement and render coating
- offset drip edge for targeted water diversion and a precise, clean render border
- length: 2.00 m
- can be used for 10 mm and 20 mm plate thicknesses
Consumption
approx. 0.42 unit/m
Ordering Information
3534 / 10 mm / PU 25 units, including connector
3534 / 20 mm / PU 25 units, including connector
