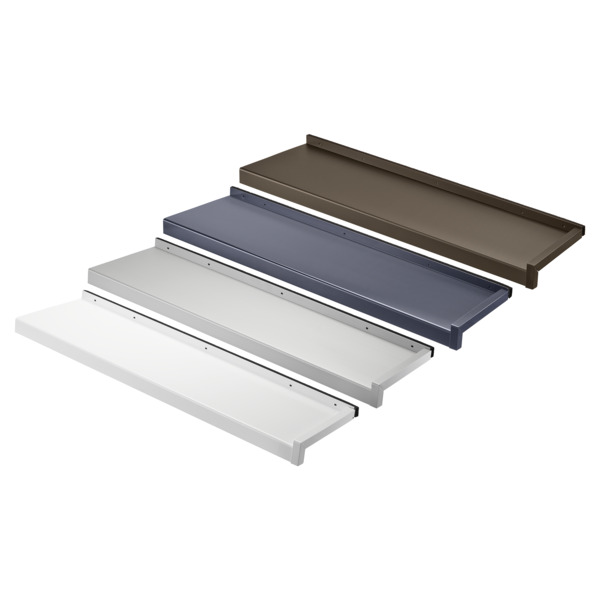

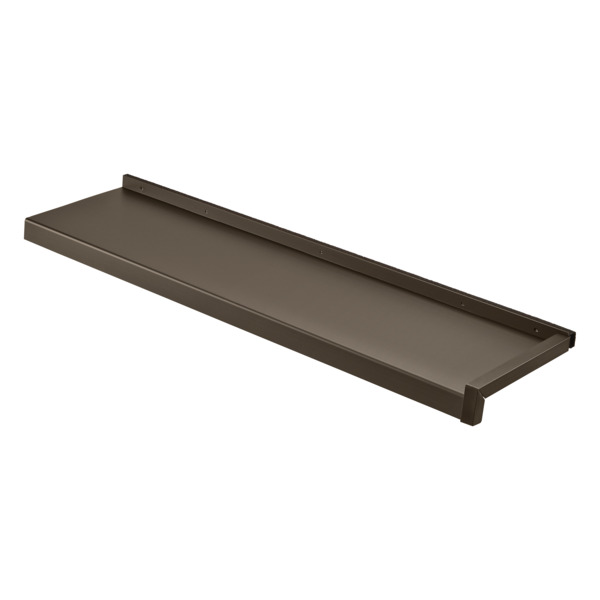

Window Sill 3557
Aluminum window sill profile as the ideal solution to construction requirements in the Brillux ETIC system. New or old build, regardless of whether an existing window sill has been removed or cut off flush with the facade.
- very visually appealing thanks to a 40 mm high front view
- with sealing tape applied in the factory
- extremely easy assembly thanks to universal wall anchors
- made from anodized aluminum, as a result, resistant to corrosion
- a customized solution is possible thanks to staggered overhangs for each facade insulation thickness
- ideal lateral connection to the ETIC System with TS Sliding End Elements 3800
- slotted perforation: 4.2 x 7.2 mm at a distance of 300 mm on the screw link
- can be delivered with overhangs from 50 - 400 mm
- length: max. 6 m
3557 / 50 mm / PU 1
3557 / 70 mm / PU 1
3557 / 90 mm / PU 1
3557 / 110 mm / PU 1
3557 / 130 mm / PU 1
3557 / 150 mm / PU 1
3557 / 165 mm / PU 1
3557 / 180 mm / PU 1
3557 / 195 mm / PU 1
3557 / 210 mm / PU 1
3557 / 225 mm / PU 1
3557 / 240 mm / PU 1
3557 / 260 mm / PU 1
3557 / 280 mm / PU 1
3557 / 300 mm / PU 1
3557 / 320 mm / PU 1
3557 / 340 mm / PU 1
3557 / 360 mm / PU 1
3557 / 380 mm / PU 1
3557 / 400 mm / PU 1
- very visually appealing thanks to a 40 mm high front view
- with sealing tape applied in the factory
- extremely easy assembly thanks to universal wall anchors
- made from anodized aluminum, as a result, resistant to corrosion
- a customized solution is possible thanks to staggered overhangs for each facade insulation thickness
- ideal lateral connection to the ETIC System with TS Sliding End Elements 3800
- slotted perforation: 4.2 x 7.2 mm at a distance of 300 mm on the screw link
- can be delivered with overhangs from 50 - 400 mm
- length: max. 6 m
3557 / 50 mm / PU 1
3557 / 70 mm / PU 1
3557 / 90 mm / PU 1
3557 / 110 mm / PU 1
3557 / 130 mm / PU 1
3557 / 150 mm / PU 1
3557 / 165 mm / PU 1
3557 / 180 mm / PU 1
3557 / 195 mm / PU 1
3557 / 210 mm / PU 1
3557 / 225 mm / PU 1
3557 / 240 mm / PU 1
3557 / 260 mm / PU 1
3557 / 280 mm / PU 1
3557 / 300 mm / PU 1
3557 / 320 mm / PU 1
3557 / 340 mm / PU 1
3557 / 360 mm / PU 1
3557 / 380 mm / PU 1
3557 / 400 mm / PU 1
Bitte sprechen Sie Ihren Verkaufsberater oder Ihre Niederlassung an, wenn Sie dieses Produkt bestellen möchten.
